After reading this article, it is easy to choose self-lubricating wear-resistant materials!

Why do we need self-lubricating plastics?

Friction and wear of mechanical components has always been a key challenge – traditional friction reduction methods that rely on external lubricants not only have inherent defects such as oil adsorption of dust, failure in high-temperature environments, high maintenance costs, etc., but also difficulty in meeting the long-term stability requirements under extreme operating conditions. The birth of self-lubricating plastic materials is a revolutionary solution to this pain point. Through the built-in solid lubricant such as PTFE, graphite, molybdenum disulfide or molecular structure design, this type of material is endowed with a "self-lubricating gene", which can be achieved without external lubrication:

✅ Ultra-low coefficient of friction (0.050.2, close to ice sliding characteristics)

✅ Super wear resistance (35 times longer life than metal bearings)

✅ Significant vibration and noise reduction (noise reduction of 1020 decibels)

✅ Maintenance-free (especially suitable for extreme environments such as high and low temperatures, vacuum, etc.)

Discover the science of self-lubricating performance

The outstanding performance of self-lubricating plastics is the result of interdisciplinary innovation in materials science and tribology:

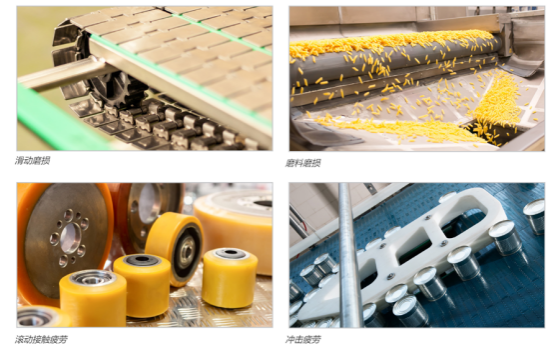

1. Double protection mechanism for friction and wear

Sliding wear control: When the material moves relative to the metal surface, the built-in lubricant forms a nano-scale "transfer film" at the contact interface, acting as an invisible "protective shield" to isolate direct friction.

Abrasive wear resistance: high-strength reinforcing phases such as carbon fiber and glass fiber are like "body armor" inside the material, effectively blocking scratches and erosion of rough surfaces or gravel.

Analysis of key performance parameters:

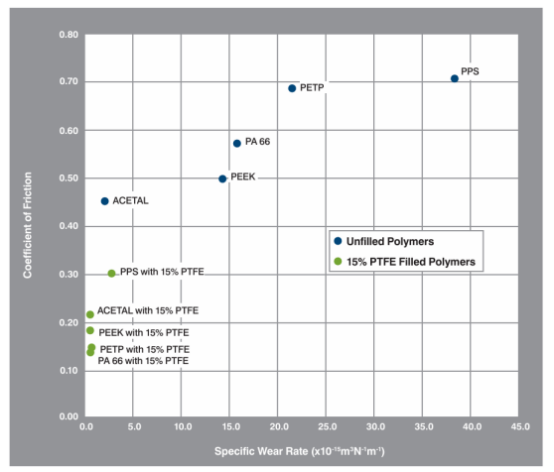

Wear coefficient K:

◦ Core laboratory metrics: A 0.1×10⁻¹⁰ decrease in K value is associated with a 1.5-fold increase in component life

◦ Actual combat formula: wear volume = K× pressure× speed × time (e.g., PA66 30% glass fiber vs UHMWPE, K value 0.46 vs 0.05, the difference in life under the same working conditions is 9 times!) ）

PV Limit Values: The "Ceiling" of the Material's Load-Bearing Capacity

Performance King: PEEK Carbon Fiber (13 MPa·m/s, comparable to aerospace bearing steel)

Best price/performance ratio: PA66 PTFE (3.3 MPa·m/s, only 1/3 of the cost of metal)

Extreme Environment Expert: PI (1.8 MPa·m/s, 300°C High Temperature Stable Operation)

2. Synergistic mechanism of lubricants

PTFE (polytetrafluoroethylene): 0.1 micron particles create a "molecular-scale skating layer" on the surface with a coefficient of friction as low as 0.05.

Molybdenum disulfide (MoS₂): Stable lubrication performance in high-temperature environments, especially suitable for high-load scenarios such as automobile engines.

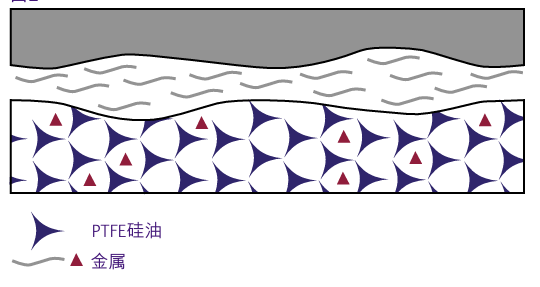

Silicone oil PTFE composite system: Silicone oil quickly migrates to the surface to form a lubricating film, which greatly shortens the run-in period of the equipment and realizes "lubrication at start-up".

Multi-dimensional performance assurance system

The stable performance of self-lubricating plastics depends on the precise coordination of material formulation, molding process, and structural design: from molecular chain orientation control to enhanced phase dispersion technology, every link has undergone tribological simulation and rigorous working condition testing.

Cross-domain application territory

1. Industrial scene innovation

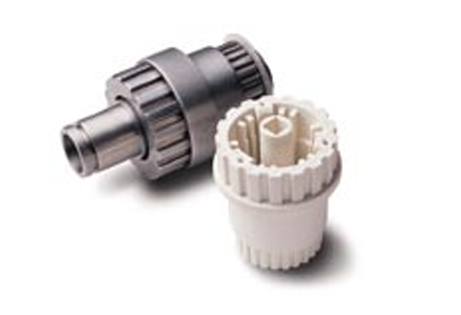

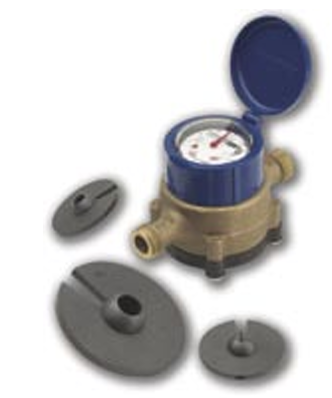

Mechanical engineering: silent bearings for textile machinery and maintenance-free gears for water meters, the service life is increased by more than 5 times

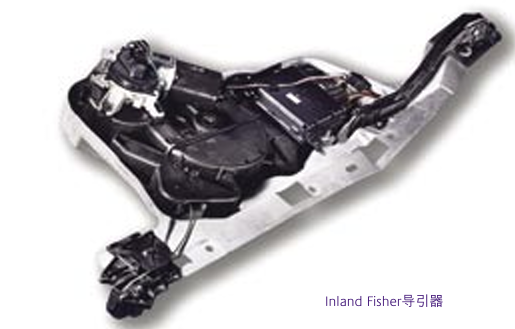

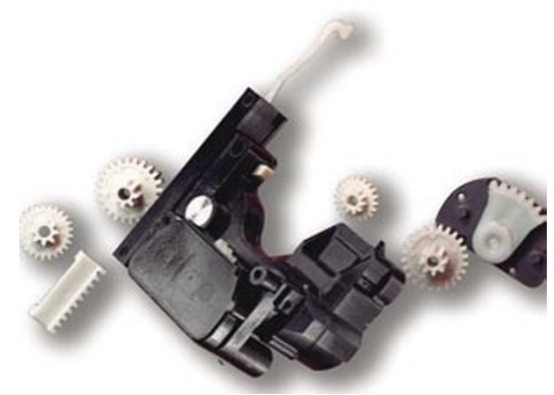

Automotive industry: engine gasket that works stably in 120°C oil environment completely eliminates the abnormal noise of door locks

2. High-end manufacturing breakthroughs

Aerospace: The hinge of the satellite solar panel is made of PEEK PTFE material, which maintains smooth rotation under the extreme temperature difference of 180°C~260°C (PEEK-based material can withstand a maximum temperature of 260°C)

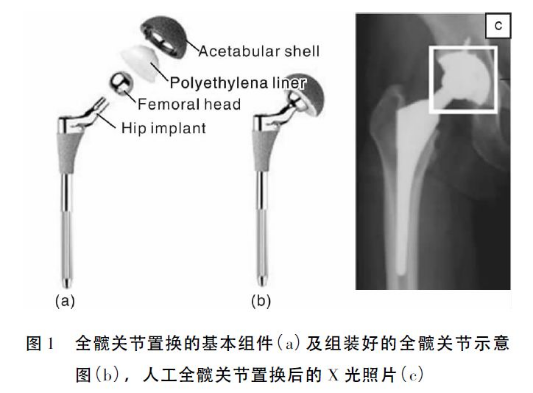

Biomedical: UHMWPE artificial joint material, friction coefficient as low as 0.02, clinical service life of more than 20 years

The direction of future technology evolution

With the iteration of material modification technology, a new generation of self-lubricating plastics is challenging the extreme scene:

Ultra-high temperature lubrication: Polybenzimidazole (PBI) material breaks through the temperature resistance limit of 400°C and aims at the core components of aero engines

Space-grade protection: Graphene-reinforced composites resist cosmic rays and micrometeorites

Biodegradable lubrication: Biodegradable material for implantable medical devices, fully bioabsorbable after surgery

The emergence of self-lubricating plastic materials not only redefines the tribological properties of mechanical parts, but also opens up a new path in the field of green manufacturing and intelligent maintenance. From industrial production lines to aerospace equipment, from vehicles to human organs, this "invisible technology" that integrates material science and engineering wisdom is quietly promoting the global manufacturing industry to be more efficient, intelligent and sustainable with the characteristics of low energy consumption, long life and maintenance-free. In the future, with breakthroughs in cutting-edge fields such as nano lubrication technology and self-healing materials, mechanical systems may usher in a truly "zero friction" era.
