Panoramic Analysis of the Special Engineering Plastics Industry Chain: Technical Barriers and Opportunities in a Hundred-Billion Market

I. Core Material System and Technological Innovation Path

Among the family of special engineering plastics, five ace materials construct a complete performance matrix:

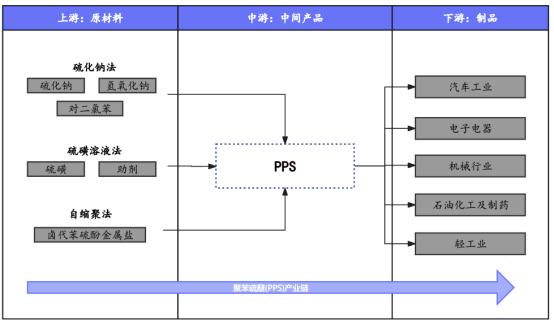

Polyphenylene Sulfide (PPS) - The Expert in Industrial Anti-Corrosion

Structural Characteristics: The rigid framework formed by the alternating benzene rings and sulfur atoms endows the material with semi-crystalline properties.

Performance Advantages: Its corrosion resistance exceeds that of stainless steel (resistant to concentrated sulfuric acid at 200°C), and the volume resistivity is as high as 10^16Ω·cm.

Application Breakthrough: Tesla's 4680 battery case uses PPS composite materials, reducing the weight by 30% and passing the UL94 V-0 flame retardant certification.

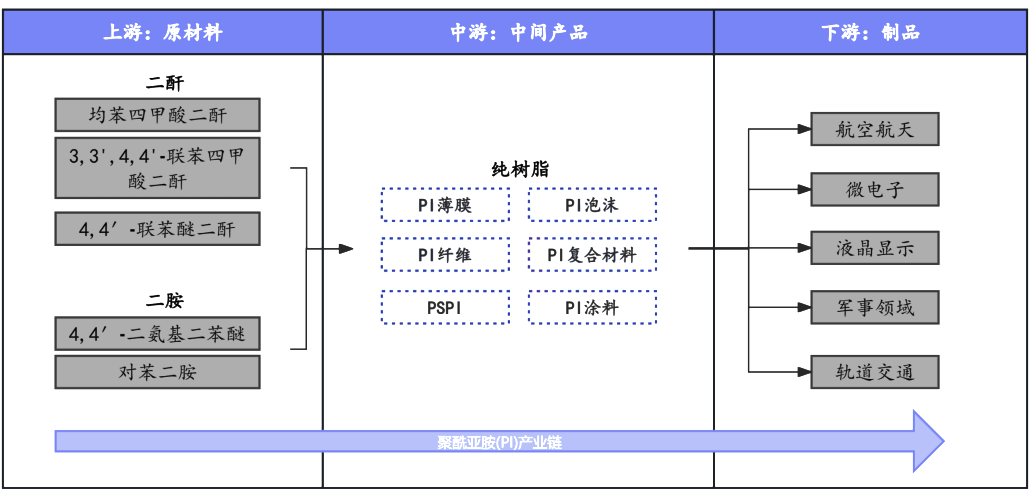

Polyimide (PI) - The King of Space-Grade Materials

Technological Breakthrough Point: The conjugated structure of the imide ring in the molecular chain achieves performance stability in the temperature range from -269°C to 400°C.

Latest Progress: In 2023, China achieved mass production of electronic-grade PI films, breaking through the 5μm thickness threshold.

Typical Application: SpaceX's Starship thermal protection system uses PI aerogel composite materials.

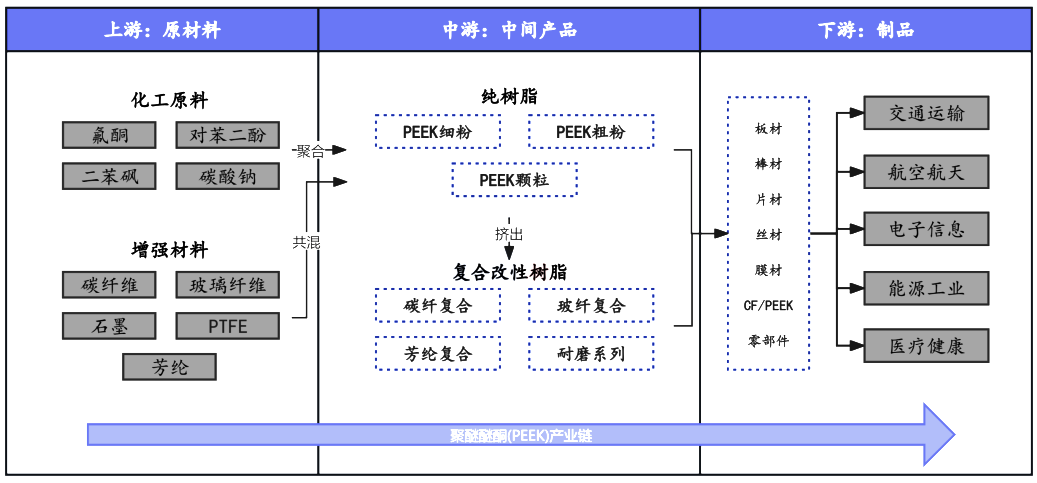

Polyetheretherketone (PEEK) - Implantable Biological Material

Synthesis Process: The nucleophilic substitution reaction controls the molecular weight distribution, and the melt flow index is stably maintained at 20-45g/10min.

Medical Breakthrough: Johnson & Johnson's 3D printed PEEK skull repair body has been approved by the FDA, with the porosity precisely controlled to 80μm.

Cost Optimization: In 2022, the price of domestic PEEK particles dropped to 800 yuan/kg, accelerating its application in automotive lightweighting.

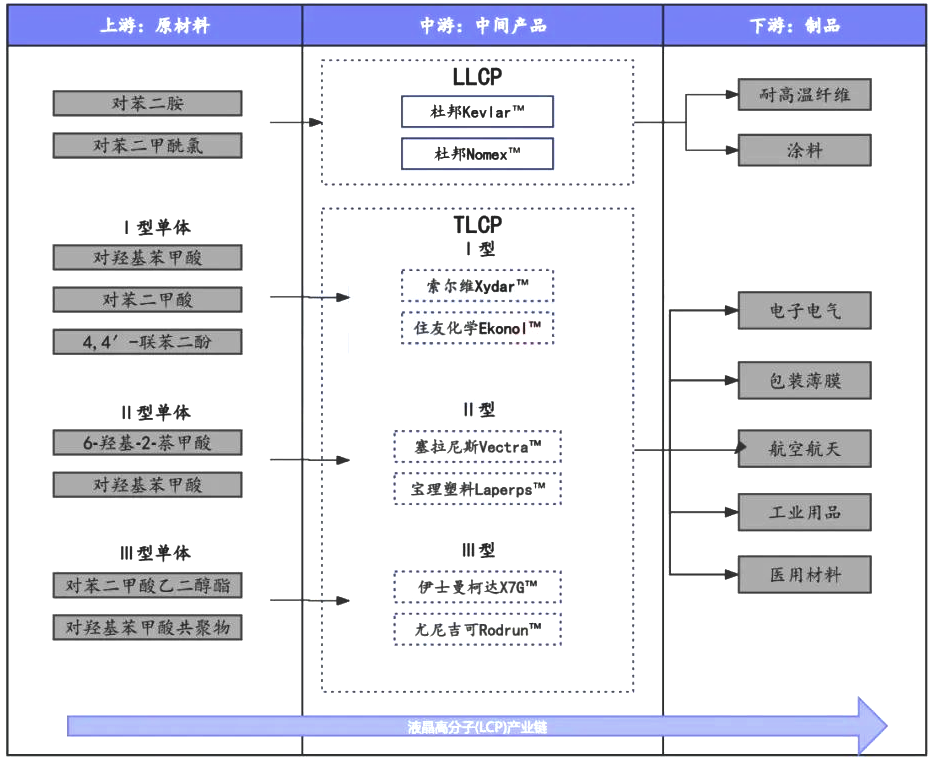

Liquid Crystal Polymer (LCP) - The Cornerstone of 5G Communication

Microstructure: The rigid rod-shaped molecules maintain an ordered arrangement in the molten state, with a dielectric loss < 0.002.

Industry Trends: Apple's iPhone 15 antenna module uses multi-layer LCP films, reducing the transmission loss by 40%.

Technical Challenges: The control of molecular orientation in the film blowing process remains a difficult point in the industry.

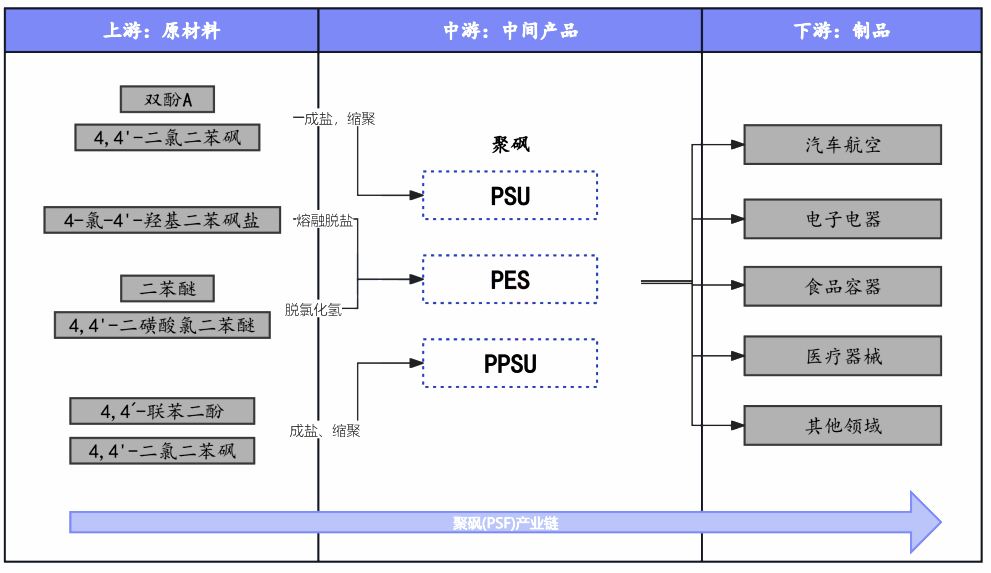

Polysulfone (PSF) - The Leader in Medical Dialysis

Material Innovation: The iteration from bisphenol A type PSU to polyethersulfone (PES) has increased the glass transition temperature to 225°C.

Certification Barriers: The FDA 510(k) certification process takes as long as 18 months, and only 3 domestic enterprises have obtained the qualification.

Market Pattern: Fresenius Medical Care monopolizes 80% of the PES membrane materials used in global hemodialyzers.

II. Global Market Pattern and Domestic Substitution Opportunities

Evolution of Market Scale

Global Market: From 2018 to 2022, the Compound Annual Growth Rate (CAGR) was 9.58%. In 2022, the market size reached 94 billion yuan, and it is expected to exceed 138.2 billion yuan by 2027.

Chinese Market: During the same period, the CAGR was 16.9%, twice the global growth rate. In 2022, the market size was 13.5 billion yuan, and it is expected to reach 21.2 billion yuan by 2027.

Analysis of the Competitive Situation

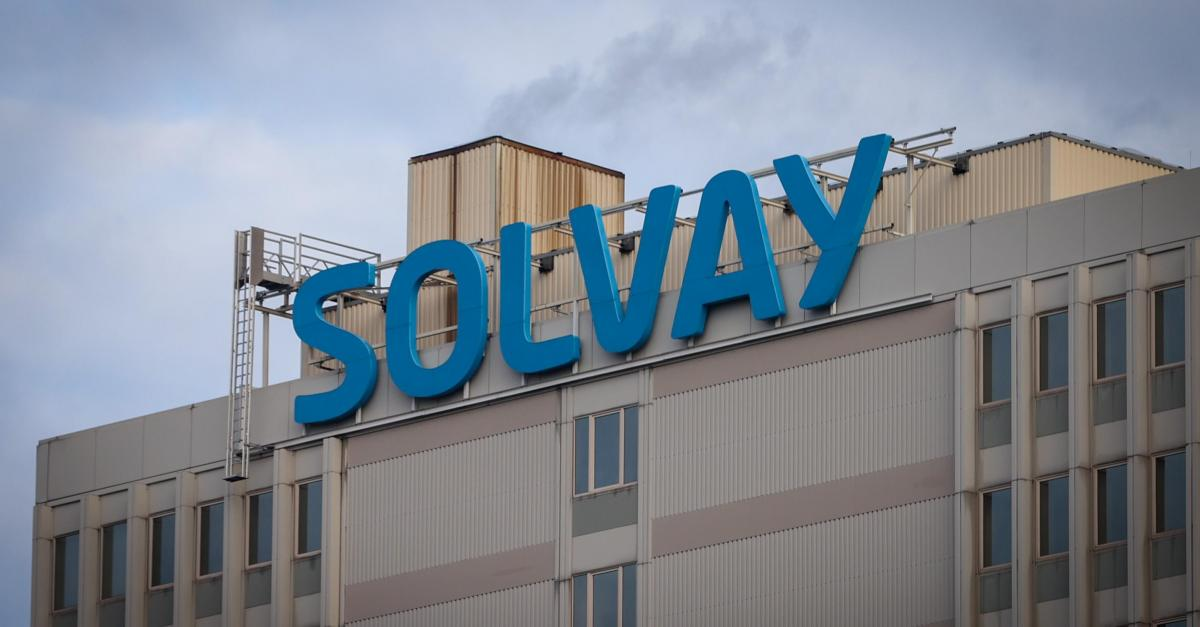

International Giants: Solvay, Victrex, DuPont, etc. account for 70% of the high-end market share.

Domestic Substitution: Zhongyan Co., Ltd.'s PEEK production capacity has exceeded 3,000 tons per year, and 沃特股份's LCP resin has been mass-applied in 5G base stations.

Technological Gap: The import price of aerospace-grade PI films still exceeds 2,000 yuan per square meter, and domestic products are in the pilot production stage.

Industrial Driving Factors

Policy Dividends: The insurance compensation policy for the first batch of applications of new materials covers special engineering plastics.

Demand Surge: The 800V high-voltage platform of new energy vehicles has spawned the demand for connector materials at the 150°C level.

Technological Breakthrough: The supercritical CO2 foaming process has reduced the density of PPS foam to 0.1g/cm³.

III. Value Distribution in the Industry Chain and Investment Hotspots

Bottlenecks in Upstream Raw Materials

The domestic production rate of bisphenol S is less than 30%, and price fluctuations affect the cost structure of PES.

The purity requirement of 4,4'-difluorobenzophenone (a monomer of PEEK) is > 99.99%, and there are patent barriers in the synthesis process.

Breakthroughs in Midstream Preparation Technologies

Reactive Extrusion Process: Increases the tensile strength of PPS composite materials to 180MPa.

Electrospinning Technology: Prepares nanofiber-reinforced PI aerogels with a thermal conductivity < 0.02W/(m·K).

Expansion of Downstream Applications

New Energy Field: The weather resistance requirements of photovoltaic junction boxes drive the substitution of PSU for PA66.

Semiconductor Manufacturing: LCP injection-molded trays replace PBT in wafer transfer, reducing electrostatic damage.

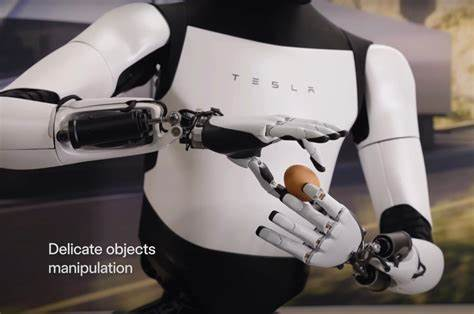

Humanoid Robots: Tesla's Optimus uses PEEK gears in its finger joints, with a service life of over 1 million cycles.

As the global manufacturing industry evolves towards intelligence and lightweighting, the special engineering plastics industry is entering a golden development period. Domestic enterprises need to achieve breakthroughs in three dimensions: monomer purification, processing technology, and application verification, especially in accelerating the catch-up in the construction of systems such as automotive-grade certification (AEC-Q200) and medical registration (ISO 13485). In the next five years, emerging fields such as the three-electric systems of new energy vehicles, the transmission mechanisms of humanoid robots, and the structural components of low-orbit satellites will generate an incremental market of tens of billions of yuan for special engineering plastics.
